Embedded systems have become a fundamental building block of modern technology. These systems, which power everything from smart home devices to critical infrastructure like industrial automation and autonomous vehicles, require real-time responsiveness and precision. With the increasing complexity of embedded applications, Real-Time Operating Systems (RTOS) have emerged as essential components to manage the multitasking demands of these systems effectively. In this blog, we’ll dive deep into how RTOS optimizes embedded systems, explore their applications, examine the challenges of their integration and look at future trends shaping this domain.
What is an RTOS?
A Real-Time Operating System (RTOS) is a specialized operating system designed for applications that require predictable, timely and deterministic execution of tasks. Unlike general-purpose operating systems like Windows or Linux, an RTOS is engineered to guarantee that high-priority tasks are executed within strict time constraints. This is especially critical in fields such as automotive, medical devices, robotics and industrial automation where any delay could have serious consequences.
An RTOS can be either hard real-time, where missing a deadline is unacceptable (e.g., airbag systems in vehicles), or soft real-time, where deadlines are important but a slight delay is tolerable (e.g., multimedia applications).
How RTOS Optimizes Embedded Systems
An RTOS provides significant advantages for embedded systems by improving several key aspects of their performance. Let’s break down the critical features that optimize embedded systems.
Task Prioritization and Scheduling
One of the core functionalities of an RTOS is efficient task scheduling. Preemptive scheduling, where a higher-priority task interrupts a lower-priority one, and cooperative scheduling, where tasks voluntarily yield control, are commonly used scheduling techniques. For instance, the ARM Cortex-M4 processor, commonly used in embedded applications, relies on preemptive scheduling to handle multiple tasks with strict timing requirements. This is particularly important for embedded systems that need to perform complex operations like sensor data processing while handling real-time control signals concurrently.
Low Latency
For many applications, an RTOS ensures that critical tasks respond to real-time events with minimal delay. In automotive systems, for example, airbag deployment systems powered by microcontrollers like the NXP S32K144 use RTOS to ensure that safety-critical tasks are executed within microseconds, thus minimizing latency to prevent failure in life-saving operations. The ability of RTOS to reduce response times is paramount in applications where safety and time-sensitive actions are non-negotiable.
Resource Management
In embedded systems, resources like memory and processing power are often limited. RTOS optimizes resource management by dynamically allocating memory, handling inter-task communication and ensuring that the CPU is not overburdened by non-essential tasks. For example, the FreeRTOS kernel allows developers to efficiently manage task execution with minimal memory overhead, often running on microcontrollers with as little as 8 KB of RAM, such as the STMicroelectronics STM32F103 series.
Power Efficiency
Power consumption is a critical consideration in embedded systems, especially in battery-powered applications. RTOS optimizes power usage by enabling features like sleep modes, where non-essential tasks are put to sleep and dynamic voltage and frequency scaling (DVFS) to adjust the CPU’s power consumption based on the workload. The Texas Instruments MSP430 series of microcontrollers is widely recognized for its ultra-low-power operation, leveraging an RTOS to manage tasks in power-constrained environments.
Applications of RTOS in Embedded Systems
The adoption of RTOS spans numerous industries, each with its specific requirements and benefits. Let’s explore some prominent use cases.
Automotive Systems
RTOS plays a vital role in the development of Advanced Driver Assistance Systems (ADAS), infotainment systems and powertrain control in modern vehicles. The Qualcomm Snapdragon Automotive Platform integrates an RTOS to support real-time decision-making, crucial for autonomous driving algorithms, adaptive cruise control, and safety systems. These systems must process sensor data from cameras, LiDAR and radar with minimal latency, making RTOS a key enabler of safe and efficient automotive applications.
Industrial Automation
Embedded systems in industrial automation require RTOS to ensure reliable, real-time control of robotics, conveyor belts and other machinery. For instance, robotic arms using Rockwell Automation’s Allen-Bradley ControlLogix systems rely on RTOS to manage real-time feedback and precise motion control. The deterministic nature of RTOS ensures that tasks like motor control and sensor reading are executed within predefined time frames, which is critical for maximizing productivity and ensuring safety in manufacturing environments.
Healthcare Devices
Medical devices, such as ventilators, infusion pumps and imaging systems, depend on RTOS for reliable, real-time performance. The Microchip PIC32 series of microcontrollers, often used in these devices, ensures that real-time processing of patient data is handled without delays, which can directly impact patient outcomes. RTOS guarantees that critical tasks like patient monitoring and medication administration are performed without interruption.
Consumer Electronics
In consumer electronics, from smartphones to IoT devices, RTOS enhances performance and responsiveness. For example, the Nordic Semiconductor nRF52840 SoC, commonly used in Bluetooth Low Energy (BLE) devices, runs an RTOS to manage multiple concurrent BLE connections, ensuring smooth user experiences. RTOS enables seamless operation of real-time applications like notifications, music streaming and device synchronization.
Aerospace and Defense
Mission-critical systems in aerospace and defense, such as avionics and missile guidance, rely on RTOS for precision and reliability. The VxWorks RTOS, used in systems like NASA’s Mars Rover, provides the real-time capabilities to operate autonomous systems in harsh and unpredictable environments. The high reliability of RTOS in these applications is non-negotiable, as mission success depends on precise task execution within stringent time constraints.
Challenges in Using RTOS
Despite its many advantages, integrating RTOS into embedded systems comes with its own set of challenges.
Complexity in Design
Developing and integrating an RTOS into embedded systems requires a deep understanding of concurrent processes, real-time scheduling and system architecture. The complexity increases when ensuring deterministic behavior in highly dynamic environments. A lack of expertise can result in system instability, unpredictable task execution or even failure.
Cost Implications
While open-source RTOS like FreeRTOS are available, proprietary RTOS solutions from companies like Wind River or Micrium can be costly. For small-scale projects or startups with tight budgets, licensing fees and support costs may be prohibitive.
Resource Constraints
Many embedded systems, especially in the IoT domain, operate on devices with limited processing power and memory. Implementing an RTOS in these systems demands careful optimization to ensure that system resources are used efficiently. This might involve stripping down RTOS features to fit the resource constraints.
Debugging and Maintenance
Debugging real-time systems is a complex task. Given the concurrent nature of tasks and the strict timing requirements, identifying bugs and ensuring the system behaves as expected requires sophisticated debugging tools, such as Real-Time Debuggers and Logic Analyzers, to monitor and analyze task execution and timing.
Trends in RTOS for Embedded Systems
The RTOS landscape is evolving, driven by new technologies and emerging requirements in embedded systems.
Open-Source RTOS
The popularity of open-source RTOS solutions like Zephyr continues to grow, offering cost-effective alternatives to proprietary solutions. These RTOS options come with strong community support, which accelerates development and reduces integration costs.
Integration with IoT

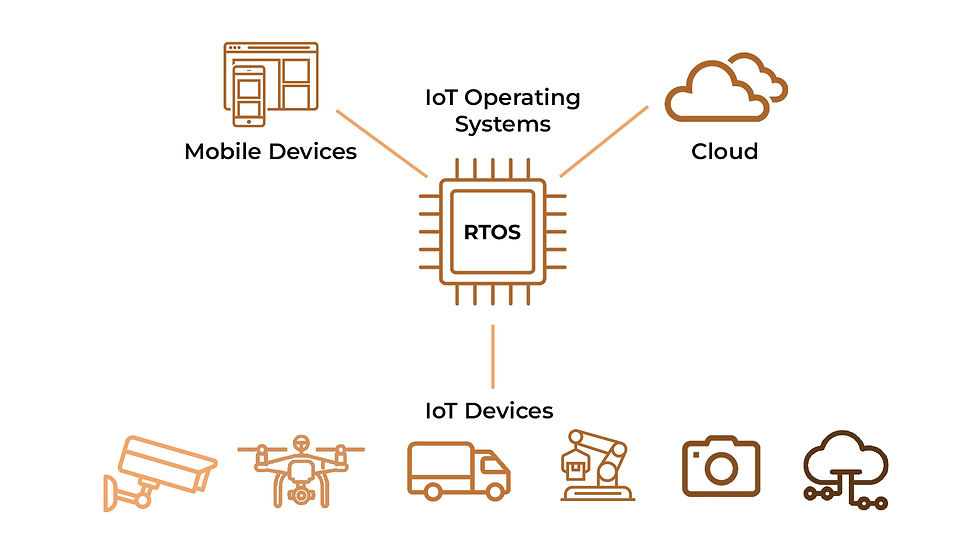

RTOS is becoming increasingly important in the IoT ecosystem, where devices need to collect, process and transmit data in real-time. The Zephyr OS, for example, is designed specifically to support resource-constrained IoT devices, enabling real-time performance across various hardware platforms.
AI and Machine Learning
Embedded systems are incorporating more AI and machine learning algorithms, which require RTOS to manage computationally intensive tasks. For example, an NVIDIA Jetson Nano running an RTOS can efficiently manage the real-time execution of AI models for object detection in robotics, all while maintaining high performance.
Support for Multi-Core Processors
Multi-core processors are becoming the norm in embedded systems, offering increased processing power. RTOS are evolving to leverage multi-core architectures, allowing tasks to be distributed across cores. FreeRTOS and VxWorks are examples of RTOS that can efficiently handle multi-core processors, like the NXP i.MX8 series, optimizing performance without compromising real-time guarantees.
Security Enhancements

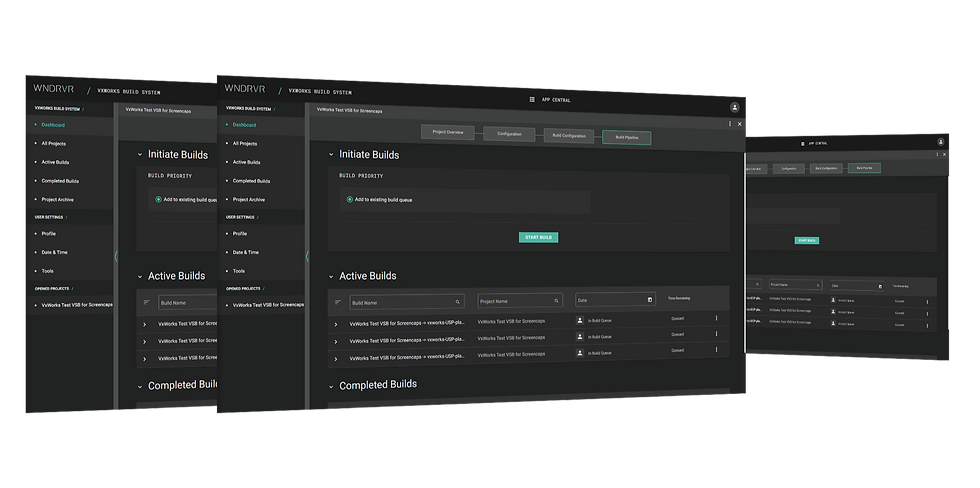

With cyber threats becoming more prevalent, vendors are focusing on integrating robust security features like secure boot, data encryption and trusted execution environments. For instance, Wind River VxWorks includes built-in security features to safeguard mission-critical applications from malicious attacks.
RTOS plays a crucial role in optimizing embedded systems, providing the real-time performance, resource management and efficiency needed for today’s complex applications. As industries continue to advance with technologies like AI, IoT and multi-core processors, the role of RTOS will only become more integral, driving innovation and ensuring the success of future embedded solutions. Whether in automotive systems, healthcare, industrial automation or consumer electronics, RTOS is the backbone of reliable and precise embedded systems that power our modern world.
